About this item

• HIGH RESOLUTION IMAGING: Capture for crisp details with 5MP CMOS sensor for precise industrial inspection and pattern recognition tasks
• for versatile COMPATIBILITY: Fits general microscopes via included 23.2mm, 30mm, and 30.5mm adapters for seamless digital eyepiece integration
• FAST DATA TRANSFER: USB 2.0 interface delivers stable 480Mb/s for smooth live viewing and efficient image acquisition workflows
• FLEXIBLE CONTROL SETTINGS: Adjust exposure time and white balance manually or automatically to suit varying lighting conditions perfectly
• LONG LASTING PERFORMANCE: Rigorously tested hardware ensures reliable operation in machine vision and electronic testing environments

Features:

*High- USB2.0 interface, up to 480Mb / s.

*Large area array CMOS progressive scan for image sensor.Support for static and for dynamic for image .Exposure time: any adjustable.

*8bit uncompressed raw for image data, software implementation for Bayer color conversion and play installation.

*The for image is stable and reliable, after a long period of rigorous testing performance indicators.

*Can be widely used in pattern recognition, industrial testing, traffic management and machine vision and other fields. More widely used in various fields of for Microscope and for image acquisition of various for occasions.

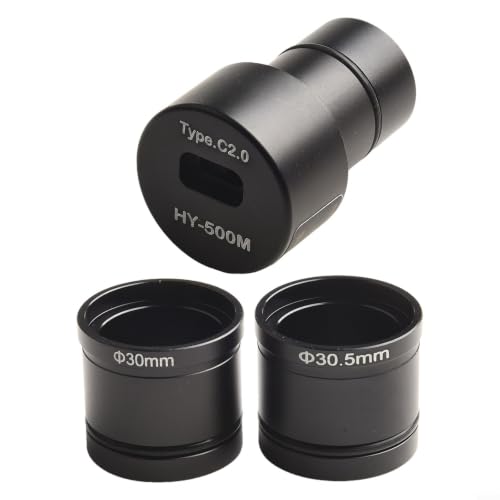

*C mouth eyepiece interface (adapter), designed for the for Microscope . the under mouth is the 23.2mm 30mm 30.5mm straight inserted.

Specifications:

Color：

Material:

for image sensor: 1 / 2.5" color CMOS for image sensor

Pixels size: 2.2 μm × 2.2 μm

The spectral response: 5nm

Scan mode: progressive scan

Pure hardware 5 megapixel for image sensor, no compression, no interpolation

Resolution:640X480@30fps,1280x1024@30fps,1600x1200@30fps,1920x1080@30fps 2048x1536@ 30fps,2592x1944@ 30fps

White Balance: Auto / Manual

Auto Exposure Control: Auto / Manual

for image output: USB2.0, 480Mb / s

Operating temperature: 0 ° C ~ °

Working current: ≈200mA

Application: for Microscope imaging, for General for image acquisition, imaging, .

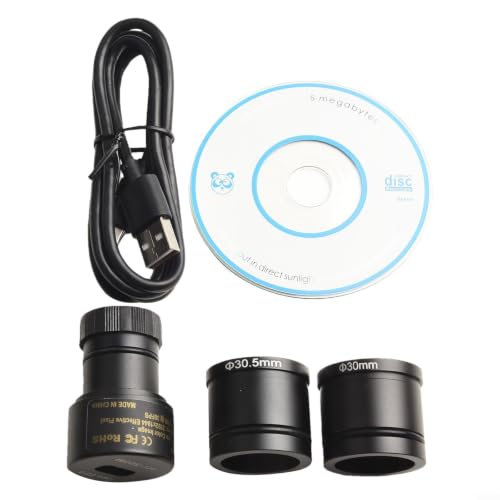

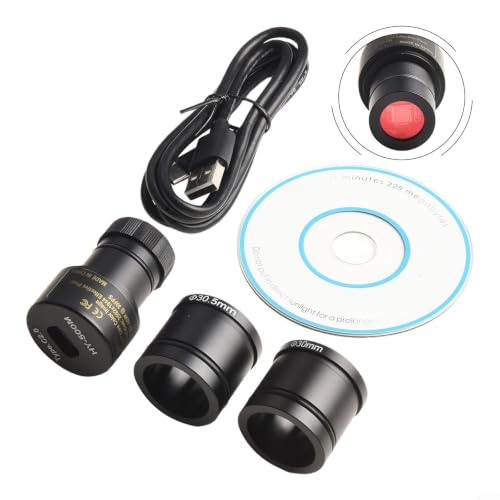

Package Included:

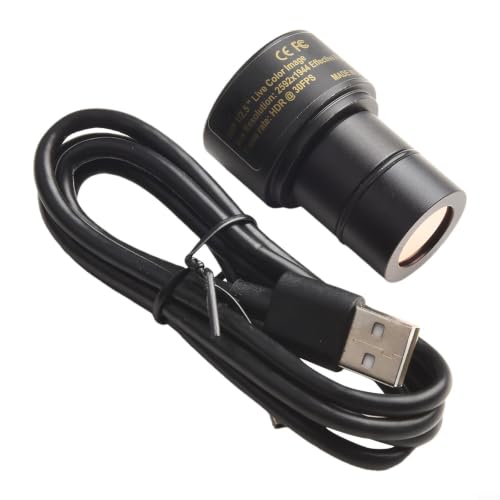

1PCS for Microscope camera

1PCS USB-Kable

1PCS 30mm adapter

1PCS 30.5mm adapter

1PCS CD
