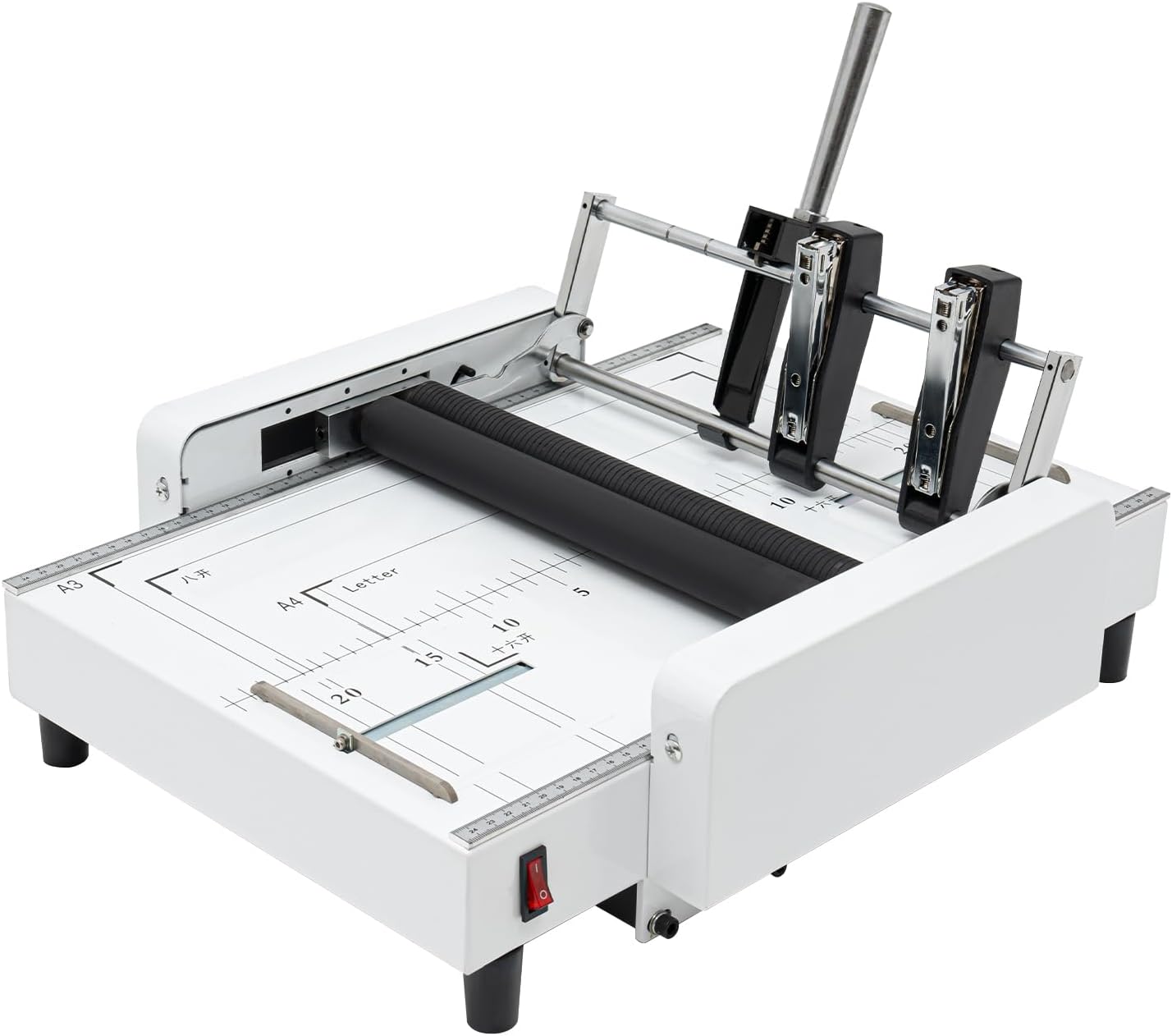

Skiennix Booklet Maker Machine - A3 Paper Folder & Stapler 2-in-1 Design with Silicone Rollers
Skiennix Booklet Maker Machine - A3 Paper Folder & Stapler 2-in-1 Design with Silicone Rollers
Couldn't load pickup availability

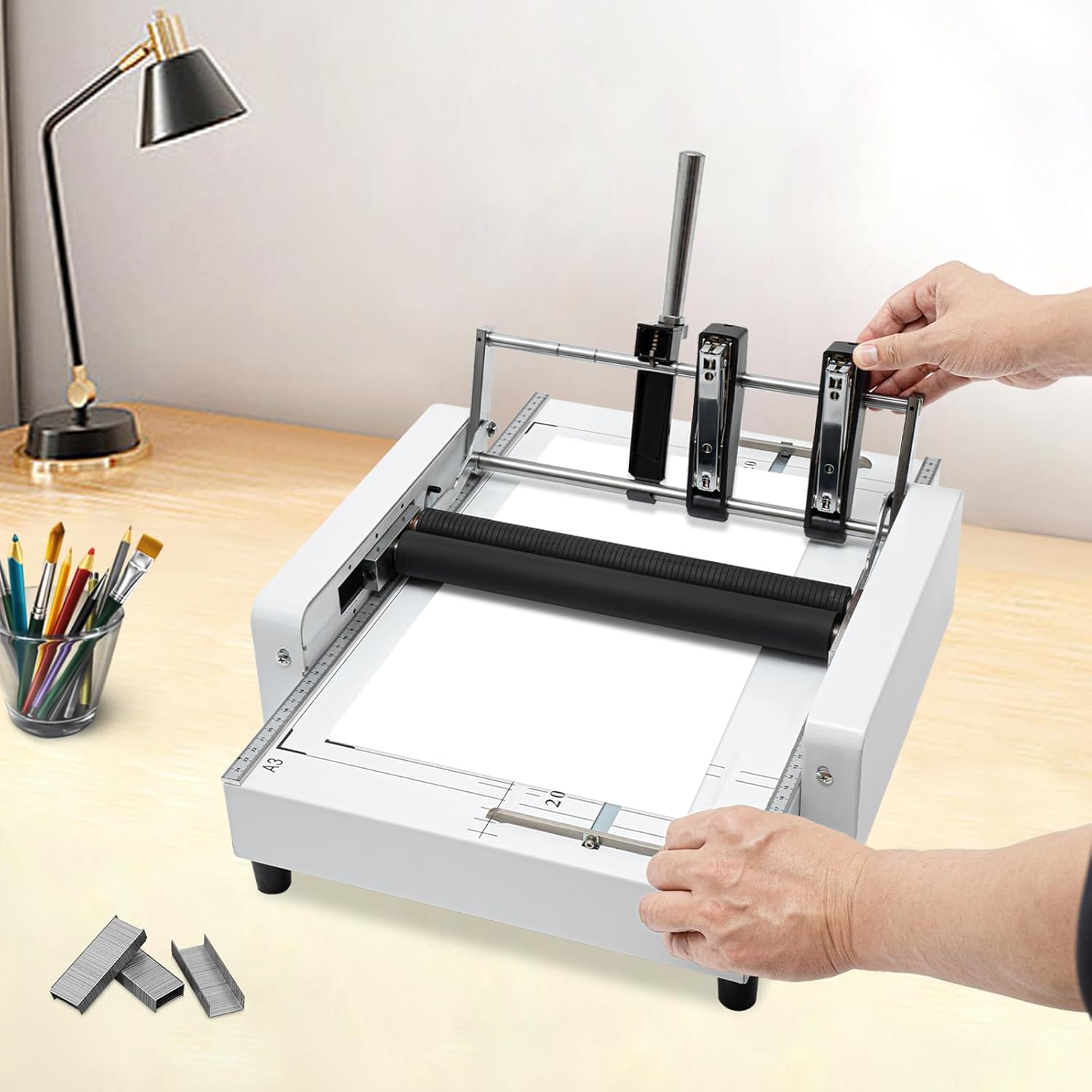

- 2-in-1 Design: You can use the booklet stapler to fold and bind at the same time, or to fold or bind separately, which can help you make booklets of different formations like middle binding, folding, edge binding, and foot binding.
- High Efficiency & Safety: It can fold and bind about 200-300 booklets (depending on the operator's proficiency) in an hour, and the stopper will return to the middle automatically, which will save a lot of time. Additionally, when the product is overpowered or short-circuited, the power switch fuse will protect the circuit, ensuring the operator's security.
- Accurate Binding: Precise positioning in millimeters and the clear, accurate, abrasion-resistant ink scales allow you to adjust the length of fixed binding material in conjunction with straightedge positioning for improved folding and binding accuracy. Meanwhile, the double support shaft can keep the staplers steady without shaking, which puts the staples in the right position.
- High-quality Material: A3 paper folder stapler machine is made of high-quality steel and silicone with processes of spraying plastics, electroplating, and galvanization, which is rust-resistant, corrosion-resistant, and durable and can ensure long-term use.
- Excellent Folding & Binding Ability: This booklet maker can bind approximately 20 sheets (edge-bound) of 80g paper and fold 14 sheets of 80g paper at one time. It can not only process ordinary paper in the format from 5.83*8.27 inches to 11.69*16.54 inches but also art paper and leather board cover paper.

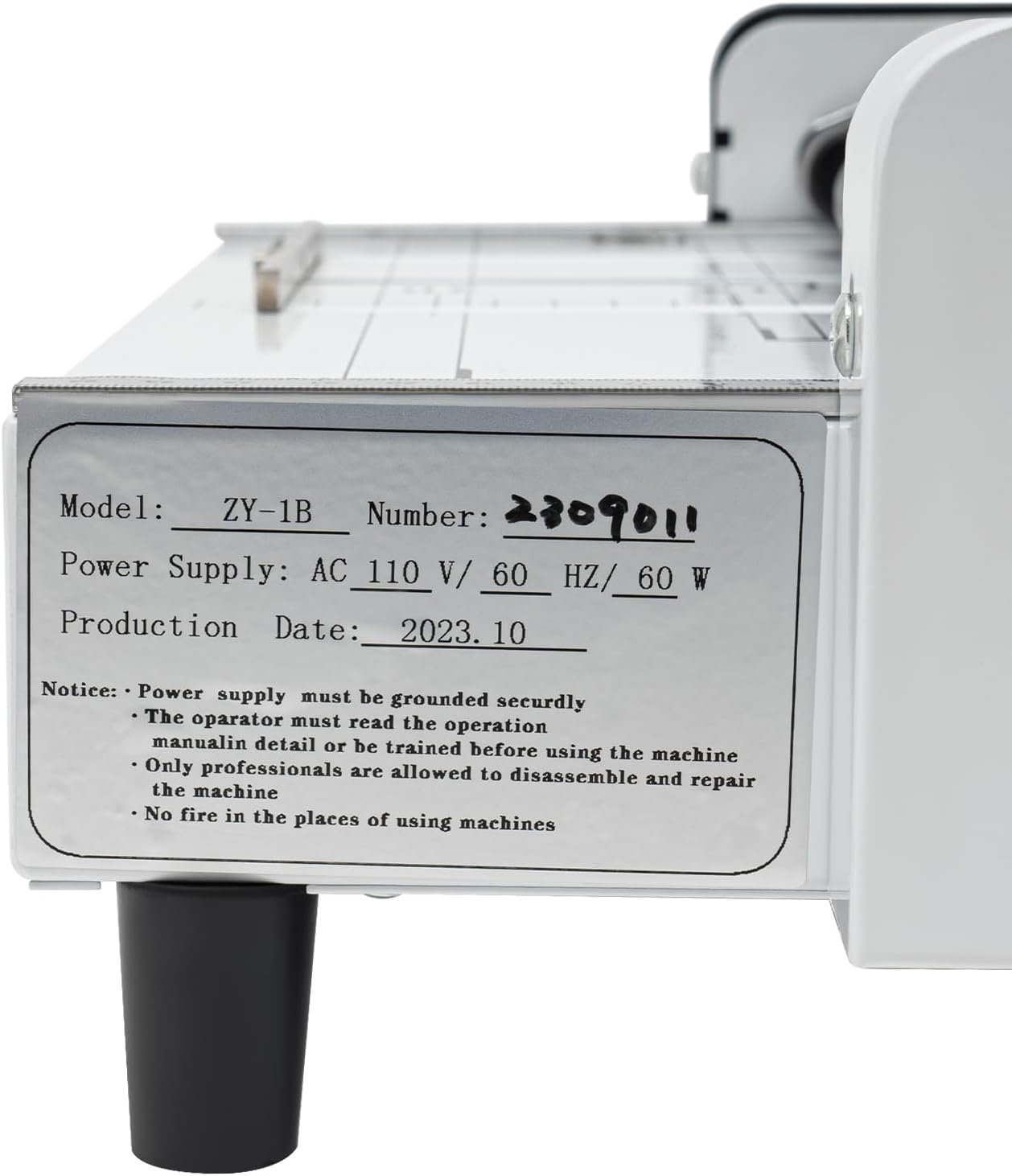

| Model: | ZY-1B |
| Material: | Steel, Silicone |
| Color: | Beige |
| Style: | Modern |
| Process: | Spraying Plastics, Electroplating, Galvanization |
| Operation Mode: | Manual |
| Power Source: | Corded Electric |
| Motor Type: | Micro-motor |
| Assembly Required: | Yes |
| Mount Type: | Free Standing |
| Plug Type: | US Standard |
| Applicable Staples: | 24/6, 24/8 |
| Voltage: | AC 110 V 60 HZ |
| Motor Power: | 60W |
| Number of Staples: | 50 |
| Binding & Folding Speed: | About 200-300Books/h |
| Max. Binding Capacity: | About 20 Sheets (80gsm/0.18 lbs paper, Edge Binding) |
| Mac. Folding Capacity: | About 14 Sheets (80gsm/0.18 lbs paper) |
| Format Range: | 148*210 mm-297*420 mm/5.83*8.27 in-11.69*16.54 in |
| Power Cord Length: | 1.34 m/4.4 ft |
| Gross Weight: | 18 kg/39.68 lbs |
| Net Weight: | 17 kg/37.48 lbs |

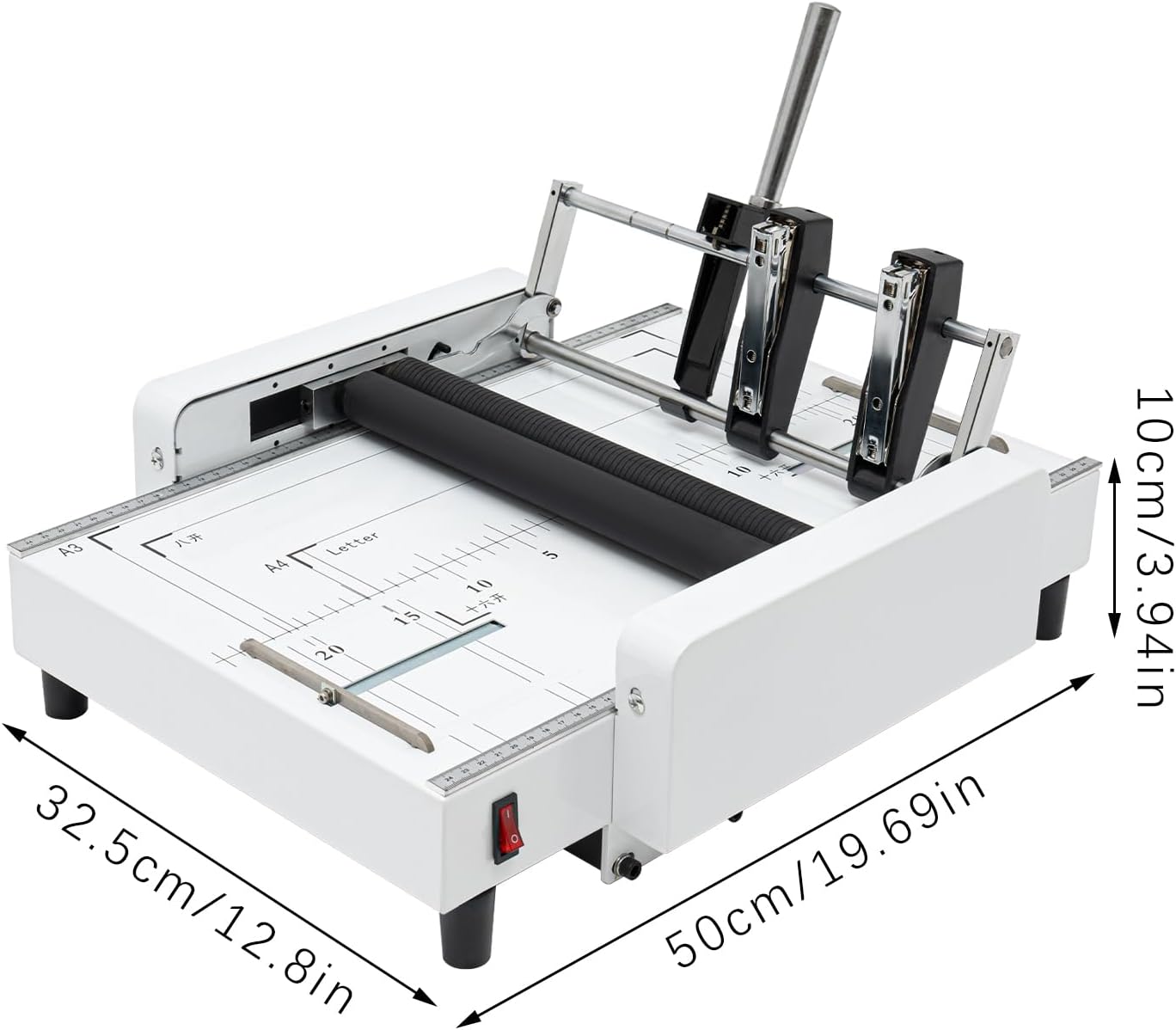

| Product Size: | 50*32.5*10 cm/19.69*12.8*3.94 in |
| Package Size: | 56*44*21 cm/22.05*17.32*8.27 in |
2-in-1 Design:
You can use the booklet stapler to fold and bind at the same time, or to fold or bind separately, which can help you make booklets of different formations like middle binding, folding, edge binding, and foot binding.
High Efficiency & Safety:
It can fold and bind about 200-300 booklets (depending on the operator's proficiency) in an hour, and the stopper will return to the middle automatically, which will save a lot of time. Additionally, when the product is overpowered or short-circuited, the power switch fuse will protect the circuit, ensuring the operator's security.
Accurate Binding:

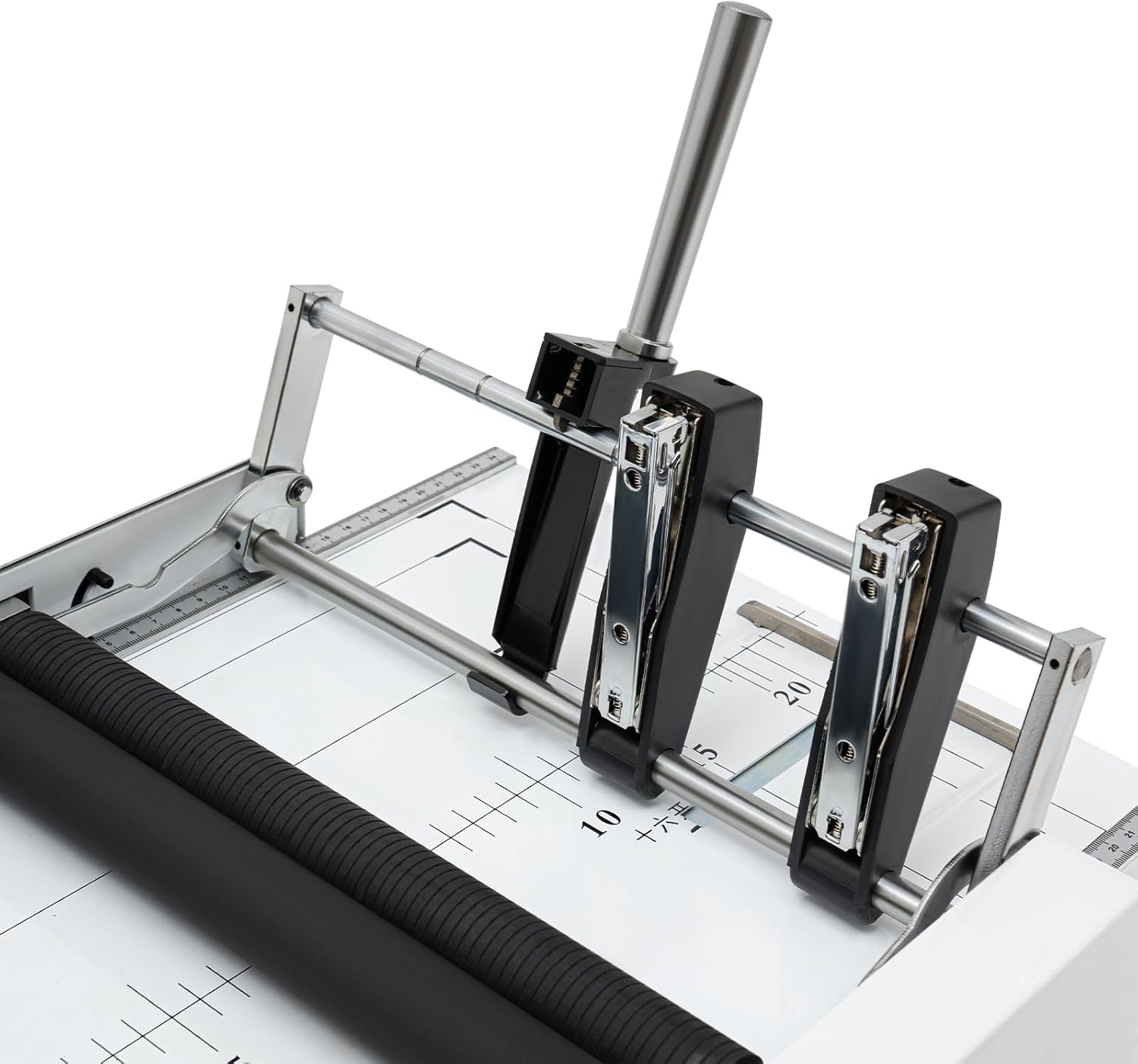

Precise positioning in millimeters and the clear, accurate, abrasion-resistant ink scales allow you to adjust the length of fixed binding material in conjunction with straightedge positioning for improved folding and binding accuracy. Meanwhile, the double support shaft can keep the staplers steady without shaking, which puts the staples in the right position.
Application
Details

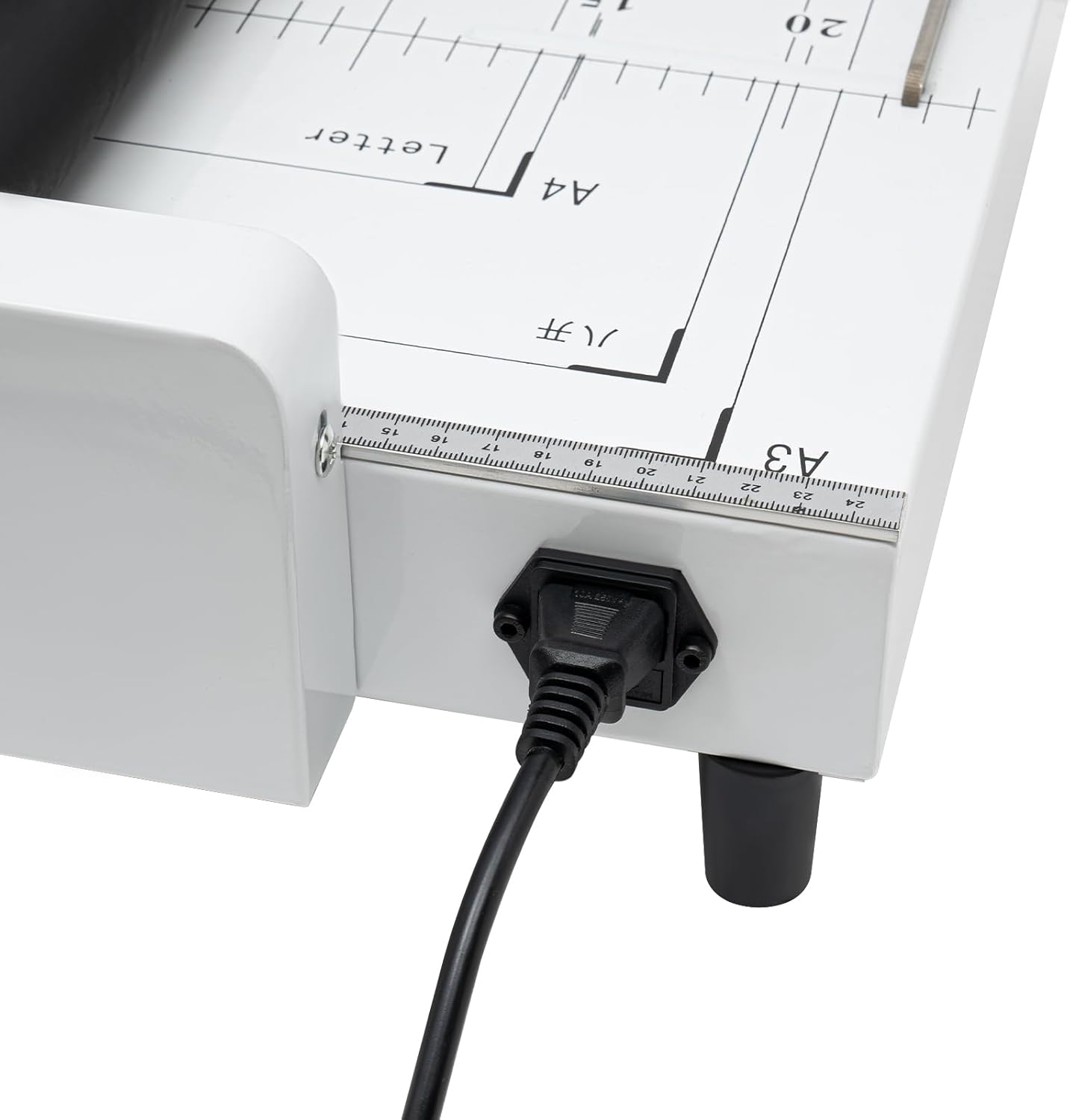

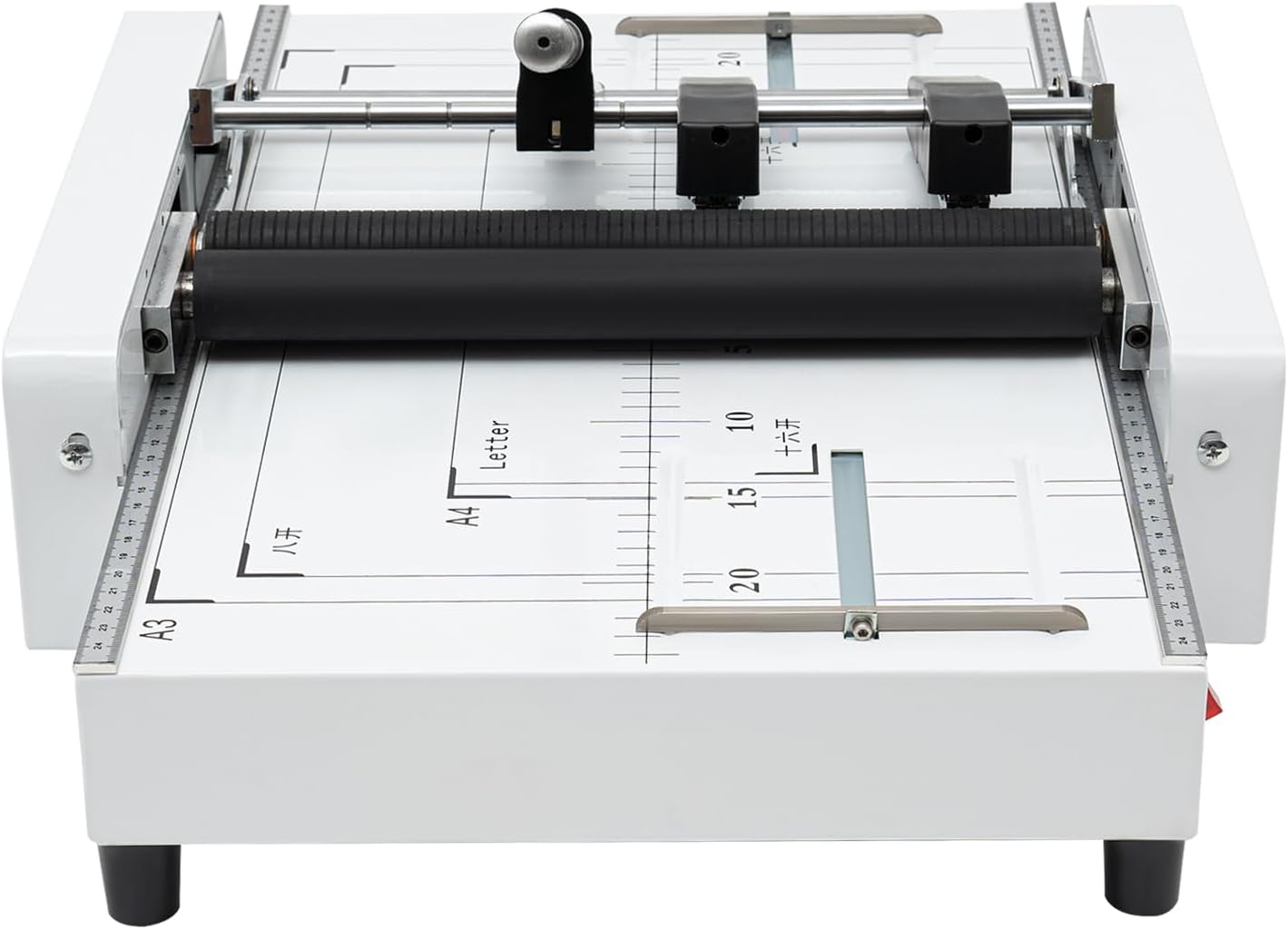

Visible Panel: The size of papers of different formats is marked on the panel, so you can easily get to know the format of a booklet.

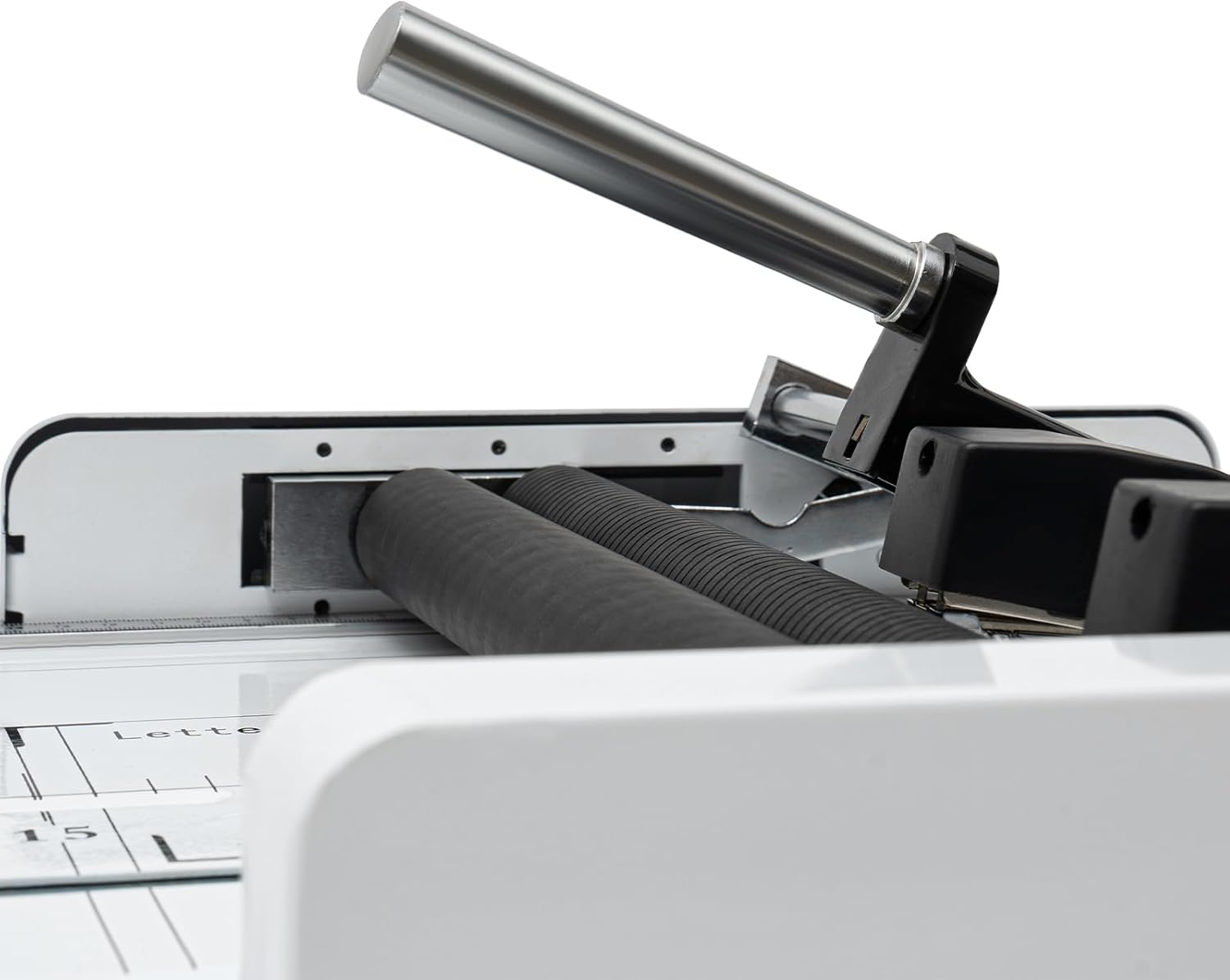

Silicone Folding Rollers: The silicone folding rollers with thread design can increase friction between them and the papers, making the folding process smoother and crease more regular.
Anti-slip Feet: They will provide maximum protection for your device, ensuring stable placement and preventing scratches on your desktop.
This product can be widely used in homes, schools, churches, small and medium-sized printing stores, graphic advertising, offices, agencies, and more.

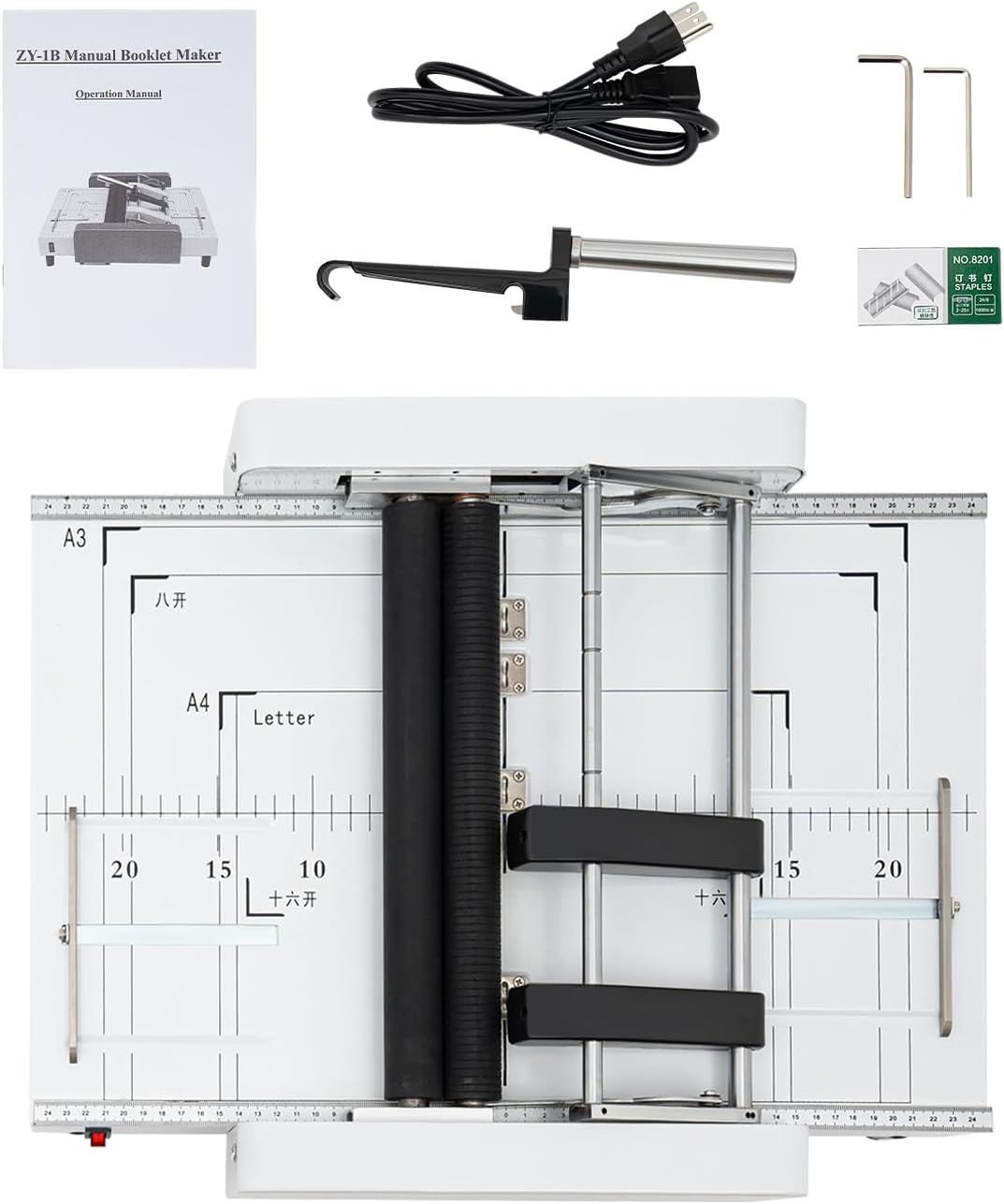

Package Included
1* A3 Folding Binding Machine
1* Power Cord
1* Binding Handle
1 Box* Staples
1* English Manual
Other Accessories for Assembly
Notes
1. The power supply must be grounded securely.
2. The product should be operated by people who have read the operation manual and label carefully or people who have been trained to use it.
3. Only professionals are allowed to disassemble and repair the product.
4. Please do put it away from the fire. Please do not put your fingers between folding rollers.
