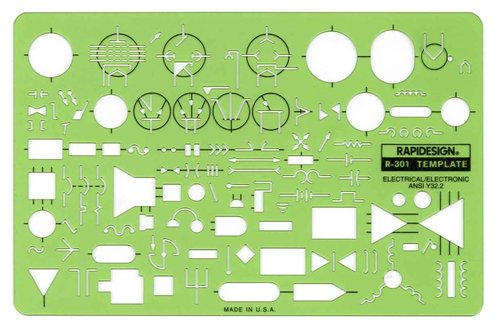

Rapidesign Standard Electrical/Electronic Symbols Template, 1 Each (R301)

Brand: RAPIDESIGN

Features:

• Contains a comprehensive set of electrical/electronic templates, taken from ANSI Y32.2 symbols
• Grouped into sections for easy use
• In correct relative size so any size grid can be obtained through photographic reduction
• Translucent green template
• Made in USA

Binding: Office Product

model number: R301

Part Number: R301

Details: Rapidesign Standard Electrical/Electronic Symbols Template contains a comprehensive set of electrical/electronic templates, taken from ANSI Y32.2 symbols. The symbols are grouped into sections for easy use, and are in correct relative size so any size grid can be obtained through photographic reduction. Made in USA. Rapidesign has the world's largest selection of drafting templates for architects, builders, engineers and graphic designers.

EAN: 0014173253132

Package Dimensions: 9.5 x 4.7 x 0.1 inches
